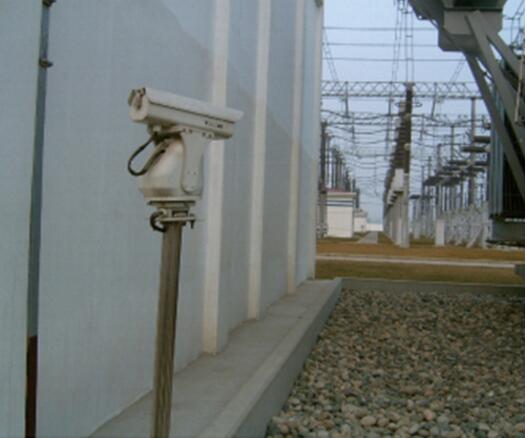

Infrared Thermal Imaging and Visible Light Video Combined Dual-View Monitoring; Automatic Intelligent Inspection - Infrared Thermal Imager Suitable for Substation Intelligent Monitoring with Comprehensive Intelligent Analysis Based on Temperature Values and Image Features

Main Features:

1. Dual-View Monitoring with Thermal Imaging and Visible Light

Based on an online temperature-measuring thermal imager, integrated with a built-in auto-calibrating black body to ensure long-term temperature stability without drift.

384×288 infrared pixels, providing 110,592 non-contact temperature measurement points.

High-definition visible light video for auxiliary observation of on-site real-time conditions.

Auto-focus function.

2. Powerful Intelligent Analysis Functions

TSIRs professional thermal imaging monitoring software, supporting customized display of multiple interfaces.

Customizable monitoring areas and alarm thresholds, with audio and color alarm functions.

Comprehensive intelligent analysis based on temperature values and image features, enabling accurate detection of potential hazards in substations.

3. Suitable for All-Weather Monitoring

Operating temperature range: -20℃~55℃.

Automatic scheduled inspection based on preset positions, suitable for large-scale monitoring.

Maintains normal monitoring and alarm functions in environments with heavy fog, smoke, dust, rain, snow, and total darkness.

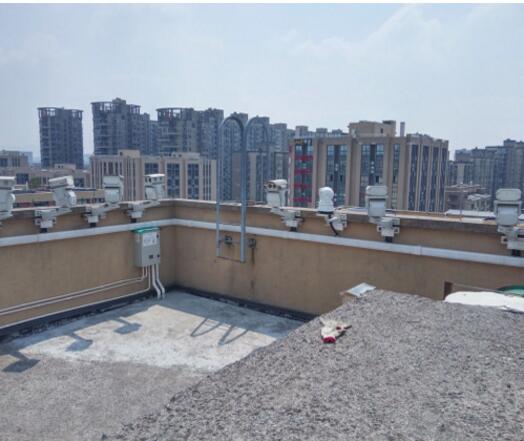

4. Convenient for Forming a Monitoring Network with Multiple Thermal Imagers

100Mbps Ethernet transmission, facilitating rapid network deployment.

Supports multiple thermal imagers to form an integrated thermal imaging monitoring system.

Can be connected to the centralized control center based on the IEC61850 smart grid protocol.

Supplementary Explanation of Core Technical Terms:

Auto-Calibrating Black Body: A built-in standard temperature reference component. It automatically corrects the thermal imager's measurement deviation during long-term operation, which is crucial for ensuring the accuracy and reliability of temperature data in substation equipment monitoring.

IEC61850 Protocol: An international standard for communication networks and systems in power system automation. It realizes interoperability between substation automation equipment from different manufacturers, allowing the thermal imager to be seamlessly integrated into the smart grid's centralized control system and achieve unified data management and remote control.

Non-Contact Temperature Measurement Points: The 110,592 measurement points correspond to the 384×288 infrared pixel matrix. This design enables simultaneous temperature detection of multiple key parts (such as busbars, transformers, and circuit breakers) of substation equipment without physical contact, avoiding safety risks caused by touching live equipment while ensuring comprehensive monitoring coverage.
