High temperature Kiln Infrared combustion detection system
LM-NZ500-750
+86-18112302260
lmgd801@163.com

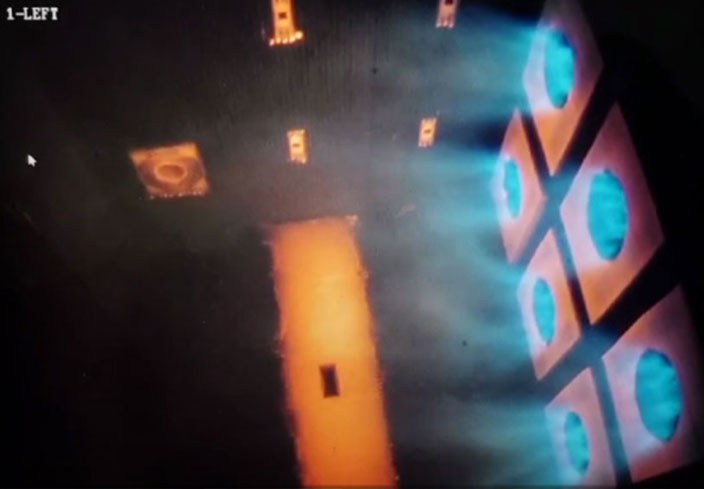

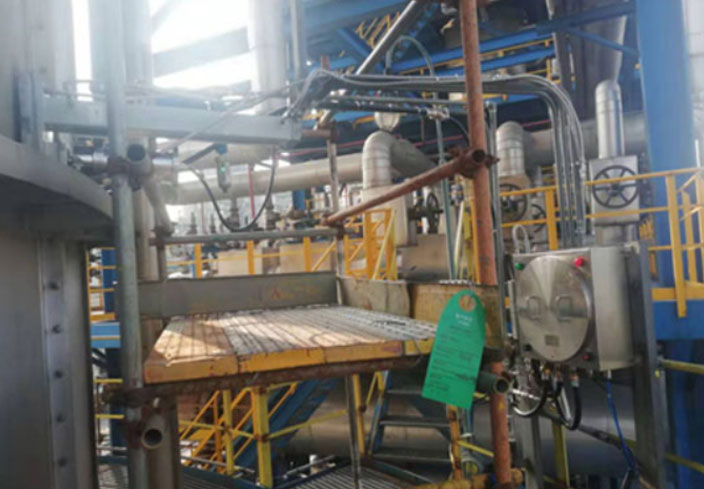

| Product Introduce | Automatic type in furnace, suitable for all kinds of high temperature kilns |
| Suitable for furnace with wall thickness ≤ 500mm | |
| The probe cover is made of stainless steel with good corrosion resistance | |
| -Special spiral air curtain design, the lens does not accumulate dust | |
| -Special air cooling design enables the equipment to be used normally under various harsh conditions | |
| Sapphire heat resistant lens | |
| The probe hood automatically enters/exits | |
| High temperature resistant cylinder, good reliability | |
| -In case of any accident in cooling water/gas and power supply, the probe cap will automatically exit | |
| -The equipment can be controlled back and forth in central control room/field | |
| -PLC Program control DCS software controls camera menu and aperture | |
| -The front end adopts high temperature resistant optical pinhole lens | |
| -Two-color temperature measurement for calibration of video image temperature | |
| -Spectroscopic signal output colorimetric temperature measurement | |
| -27 times optical zoom (3.6-78) integrated camera | |
| Main Function camera cover exits | a. the temperature inside the protective cover exceeds the specified value of 50℃ |
| b. the input pressure of compressed air is lower than 0.2mpa | |
| c. the probe cap cooling water input flow is lower than 0.2m /h | |
| d.the external power is cut off | |
| e. exit signal from control room or field control device | |
| f.Alarm signal can be accessed DCS | |
| Technical parameter | Resolution ratio：1600*1200 |
| Lens variable focal length: 3.6-78 27x optical zoom | |
| Exit stroke: 550mm | |
| Apparent field Angle: 17°-90° fixed focus or zoom | |
| Lens aperture: Electric remote control or manual control | |
| SNR: 42dB | |
| Color filter: red, yellow or panchromatic filter is optional | |
| The use of two - lens separation type high - temperature protective cover, to achieve the real sense of explosion - proof | |
| The burner extinguishes with automatic alarm function | |
| The camera and lens have oil-proof function | |
| Compressed Air | a. Total inlet pipe G1" |
| b.Connection nozzle: 4-G1/2" (with globe valve) | |
| c.Entrance pressure：0.2MPa～0.7MPa | |
| d.Inlet temperature：≤35℃ | |
| e.Minimum flow：0.3M³/min | |
| Cooling water | a.The main intake pipe G3/4" |
| b.Connection port: 2-G1/2" (plus globe valve) | |
| c.entrance pressure：0.1MPa～0.7MPa | |
| d.minimum flow：0.8M³/h | |
| e. inlet temperature：≤35℃ | |
| Working Temperature | a.Automatic exit device：5℃～80℃ |
| b.control device：-5℃～50℃ | |
| c.Furnace temperature ：≦2000℃ | |
| Dimension | a.Automatic exit device：1500×400×305mm |
| b.Field control box：400×500×250mm（W*H*T） | |
| c.Operator (there are three types, please specify when ordering) | |
| c-1.Wall-mounted installation (see figure) | |
| c-2.Disk installation (see figure) | |
| c-3.Installed in the cabinet or placed on the operating table (see figure) | |
| d.Installation diagram (see figure) | |
| e.For opening requirements, please see the brick drawing (see the drawing). | |
| Protection Grade | IP68 |
| Ex-mark | Exd IIC T6 Gb |
| Explosion-proof number | CNEx16.029 |
| System diagram | Diagram |
